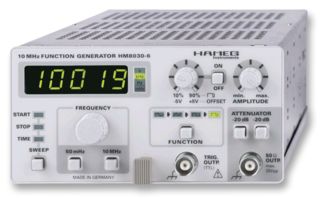

R&S HM 8030-6

The HM8030-5 Function Generator is a versatile signal source useful for many stimulus and test applications. Key features are high signal purity and constant amplitude flatness throughout the entire frequency range. This instrument is ideal for a broad range of test bench use including precision audio measurements. The output frequency can be swept internally and externally. This is ideal for examining transmission curves of a circuit under test using an oscilloscope as a measurement indicator. All outputs are electrically protected against short circuits and accidentally applied voltages of up to ±45V. Frequencies are indicated on a 4 digit LED display, making accurate and precise frequency setting possible with a maximum resolution 1mHz in the 5Hz range. The HM8030-5 Function Generator offers precision and multifunctional qualities. This makes the instrument ideally suited for laboratory and educational use.

• Frequency Range: 0.05Hz to 5MHz
• Digital Frequency Readout (4 digit)
• Waveforms: Sine, Square and Triangle
• DC Offset Adjustment, Trigger Output
• Internal Sweep and External FM Modulation Input
• Fast Square Wave Rise Time (typical 15ns)
• Distortion Factor <0.5% (up to 100kHz)

Note

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
