9400

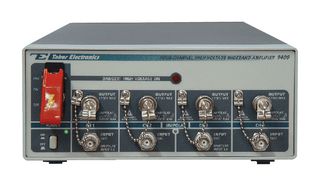

9400 is a 400Vp-p four channel signal amplifier. It is designed as a general purpose, wide band and high voltage amplifier however, with specific applications in mind. It has four channels built in a small case size to save space and cost but without compromising bandwidth and signal integrity.

• Four independent channels
• Output current to 50mA
• Full power bandwidth from DC to <gt/>500KHz
• Slew rate to 400V/µs
• Monitor outputs for each channel
• Precise signal amplification for multiple applications
• Compatible with any of the tabor waveform generators
• Special unipolar mode for MEMS engine drivers

Note

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
