2013595-1
Modular Connector, RJ45 Plug, 1 x 1 (Port), 8P8C, Cat5e, Through Hole Mount
Aveți nevoie de mai mult?
| Cantitate | Preț (fără TVA) |
|---|---|
| 1+ | 57,610 lei |
| 10+ | 51,050 lei |
| 100+ | 44,550 lei |
| 250+ | 40,640 lei |
| 500+ | 37,950 lei |
Detalii tehnice
Prezentare generală a produsului

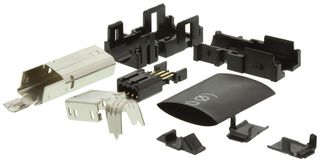

The 2013595-1 is a 8-contact type-1 industrial mini I/O Plug Kit with copper alloy contacts, glass-filled polyamide housing and nickel-plated copper alloy shield. The industrial mini I/O connector system is a small, compact, latching, wire-to-board I/O interface is suitable for the stringent demands of an industrial device. It is one quarter the size of a conventional RJ45 plug and is designed with two points of contact for increased reliability in high vibration environments. The unique latching system protects the plug from pull out during high vibration and accidental bumping. The system is most commonly used as an RJ45 replacement. It consists of 8 individual circuits that accommodate I/O signals.
- 30V Rated voltage
- 0.5A Current rating
- 1500 Cycles durability
- UL94V-0 Flammability rating
Aplicaţii
Industrial, Automation & Process Control, Robotics
Specificaţii tehnice
Mini I/O
1 x 1 (Port)
8Contacts
8Ways
Through Hole Mount
1Ports
Shielded
Without Magnetics
Without LED
Mini I/O Cable Assemblies
RJ45 Plug
8P8C
Cat5e
-
Right Angle
Solder
Gold Plated Contacts
Copper Alloy
Without Light Pipe
No SVHC (21-Jan-2025)
Legislaţie şi reglementări privind protecţia mediului
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:China
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
RoHS
RoHS
Certificat de conformitate produs
