FCS-01
Flow Sensor, SPST-NO, 1A, 0.6l/min, Water, 10bar, 3/8" BSP Male Thread, 250VAC/200VDC, FCS Series

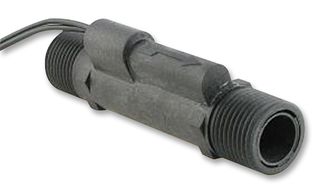

Imaginea are caracter strict ilustrativ. Vă rugăm consultaţi descrierea produsului.
ProducătorTE CONNECTIVITY
Nr. de reper producătorFCS-01
Cod de comandă2294169
Gamă de produseFCS Series
Fişă tehnică
2.338 În Stoc
Aveți nevoie de mai mult?
.
.
Livrarea Standard GRATUITĂ
la comenzi în valoare de 0,00 lei și peste
Timpul exact de livrare va fi calculat la checkout
| Cantitate | Preț (fără TVA) |
|---|---|
| 1+ | 55,830 lei |
| 10+ | 54,250 lei |
| 25+ | 50,750 lei |
Preţ pentru:Each
Minim: 1
Mai multe: 1
55,83 lei (fără TVA)
notă
Adăugat la Confirmarea comenzii, Factură și Buletinul de expediție numai pentru această comandă.
Detalii tehnice
ProducătorTE CONNECTIVITY
Nr. de reper producătorFCS-01
Cod de comandă2294169
Gamă de produseFCS Series
Fişă tehnică
Sensor TypeFlow Sensor
Flow Switch TypeSPST-NO
Flow Rate Min-
Flow Rate Max1l/min
Operating Pressure Min-
Operating Pressure Max10bar
Supply Voltage Min-
Supply Voltage Max-
Contact Rating1A
Switching Voltage AC Max250V
Switching Voltage DC Max200V
Media TypeWater
Process Connection Size3/8"
Process Connection TypeBSP Male Thread
Pipe Size-
Housing MaterialNoryl
Operating Temperature Min-30°C
Operating Temperature Max85°C
Product RangeFCS Series
Qualification-
SVHCDibutyl phthalate (DBP) (21-Jan-2025)
Pressure Max10bar
Port Size9.525mm
Prezentare generală a produsului
FCS-01 is a FCS series flow sensor suitable for water and air flow switching. Application includes leak detection, flow sensing, mains water control, cooling systems, circulation pump protection.
- Rugged high grade noryl, minimum pressure drop
- Operates from a small head of water, mount in any axis
- 3/8inch BSP male threaded fittings, suitable for hot and cold potable water
- Reed switch reliability file E125629, meets UL 94-HB flammability rating
- Food grade material, stainless steel spring material
- Black noryl housing and shuttle material and ruthenium contact material
- SPST switch action (reed switch), N/O, close with flow operate mode, A contact form, IP65 rating
- 200VDC max switching voltage, 250VAC max switching voltage
- 1Amps max switching current, 40W max switching load
- 2 x 0.5M single insulated cable length, stripped cables connection type
Avertismente
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Specificaţii tehnice
Sensor Type
Flow Sensor
Flow Rate Min
-
Operating Pressure Min
-
Supply Voltage Min
-
Contact Rating
1A
Switching Voltage DC Max
200V
Process Connection Size
3/8"
Pipe Size
-
Operating Temperature Min
-30°C
Product Range
FCS Series
SVHC
Dibutyl phthalate (DBP) (21-Jan-2025)
Port Size
9.525mm
Flow Switch Type
SPST-NO
Flow Rate Max
1l/min
Operating Pressure Max
10bar
Supply Voltage Max
-
Switching Voltage AC Max
250V
Media Type
Water
Process Connection Type
BSP Male Thread
Housing Material
Noryl
Operating Temperature Max
85°C
Qualification
-
Pressure Max
10bar
Documentaţie tehnică (1)
Legislaţie şi reglementări privind protecţia mediului
Ţara de origine:
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:Great Britain
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:Great Britain
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
Nr. tarif:90261089
US ECCN:EAR99
EU ECCN:NLR
Conformitate cu RoHS:Da
RoHS
Conform cu RoHS în ceea ce priveşte ftalaţii:Da
RoHS
SVHC:Dibutyl phthalate (DBP) (21-Jan-2025)
Descărcarea Certificatului de conformitate a produsului
Certificat de conformitate produs
Greutate (kg):.0225
