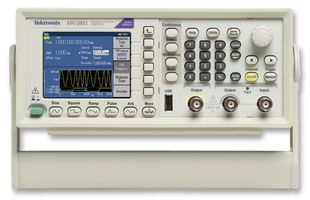

AFG2021

Features include a new 3.5 inch colour TFT screen shows relevant parameters in text and graphic formats. 2U height and half-rack width form factor enables the AFG2000 to be stacked on other bench instruments including digital multimeters, power supplies, and frequency counters saving valuable bench space.

• 0 MHz sine, 10 MHz square and pulse waveforms provide coverage for your most common applications
• 250 MS/s sampling rate and 14-bit vertical resolution enable the creation of high-fidelity signals
• The innovative UI reduces setup and evaluation time with direct access to frequently used functions
• 4 × 128 kS memory and the USB memory expansion capability
• USB remote control port and USB flash drive port
• Built-in Modulation, Noise Generator, Burst, and Sweep modes for greater versatility
• Built-in waveforms provide quick access to commonly used signals
• Large 3.5 inch colour screen displays both graphical and numeric waveform information simultaneously
• Menu and online help in 8 languages
• 2U height and half-rack width fits both benchtop and rack-mounted
• Free ArbExpress software makes waveform editing and downloading extremely easy
• Free SignalExpress software

Aplicaţii

Test & Measurement, Maintenance & Repair

Cuprins

User's Manual, Power Cord, USB Cable, CD-ROM with Programmer manual and service manual, CD-ROM with NI Labview Signal Express and IVI Drivers, CD-ROM with ArbExpress Software, and NIST-Traceable Calibration Certificate

Note

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
