268308C
Coaxial Cable, Plasma Grade, RG59, 24 AWG, 0.2 mm², 75 ohm, 328 ft, 100 m
Aveți nevoie de mai mult?
| Cantitate | Preț (fără TVA) |
|---|---|
| 1+ | 1.070,970 lei |
| 5+ | 921,460 lei |
| 10+ | 747,620 lei |
Detalii tehnice
Prezentare generală a produsului

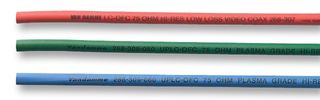

The 268308C is a standard plasma grade video Coaxial Cable with bare ultra pure oxygen-free copper conductor and a polyethylene dielectric. This RG59 high-resolution coaxial cable comes with a green flexible PVC jacket and bare oxygen-free braided copper wire screen (95% coverage). It is designed for use with analogue video signals. Precision performance is combined with flexibility usually only found in microphone cables resulting in an excellent video cable for dynamic use in the broadcast, video and presentation markets. It can be used with serial digital video transmissions up to 138m. It is also suitable for SP Dif digital audio and word clock.
- CPR: Not Yet Qualified
- 85Ω/km Conductor resistance
- 13Ω/km Shield resistance
- <gt/>5000MΩ/km Insulation resistance
- 7000VDC (1 minute OK) Voltage test
- 67pF/m Capacitance
- 66% Velocity of propagation
Aplicaţii
Signal Processing, Audio
Specificaţii tehnice
RG59
0.2mm²
328ft
Green
Copper
6.1mm
24AWG
75ohm
100m
Neoprene, PVC
7 x 0.2mm
-
Documentaţie tehnică (1)
Alternative pentru 268308C
1 produs găsit
Produse asociate
8 produse găsite
Legislaţie şi reglementări privind protecţia mediului
Tara in care ultimul proces semnificativ de fabricare a fost efectuatŢara de origine:Italy
Tara in care ultimul proces semnificativ de fabricare a fost efectuat
RoHS
Certificat de conformitate produs
