734-138

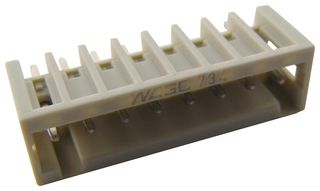

The 734-138 from Wago is a light gray colour, 8-pole male header for PCBs with 3.5mm (0.138inch) pin spacing and 0.6mm x 0.6mm press-in pins. It is 100% protected against mismating with closed ends, only mating halves with the same pole number can be connected together. The connector has tin plated copper alloy contacts and polyamide 66 (PA 66) insulation. It has 1.564g weight and 30.4mm (1.197inch) x 13.2mm (0.52inch) x 8.5mm (0.335inch) dimension (W x H x D). Coding options are available. The connector has ABS, CCA, CSA, KEMA and UR E45171 (Underwriters Laboratories Inc) approvals.

• Press-in pin dimension is 0.6mm x 1.2mm
• Solder pin length is 4.5mm, vertical PCB mounting
• Ratings per  IEC/EN 60664-1 standards and flammability class per UL94  V0
• Robust housing, shock and vibration resistant
• Rated impulse voltage of 2.5KV (III/3), 2.5KV (III/2) and 2.5KV (II/2)
• Rated voltage of 160V (III/2), 320V (II /2) and rated current of 8A
• Limit temperature range from -40°C to 85°C

Aplicaţii

Industrial
