734-168

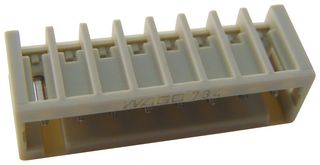

The 734-168 from Wago is a light gray colour, 8-pole male header for PCBs with 3.5mm (0.138inch) pin spacing and 1mm x 1mm angled solder pin. It is 100% protected against mismating with closed ends, only mating halves with the same pole number can be connected together. The connector has tin plated electrolytic copper (Ecu) contacts and polyamide 66 (PA 66) insulation. It has 0.031MJ fire load, 2.076g weight and 30.4mm (1.197inch) x 12.3mm (0.484inch) x 10.3mm (0.406inch) dimension (W x H x D). Coding options are available. The connector has ABS, BV, CCA, CSA, DNV GL, KEMA, UR E45171 (Underwriters Laboratories Inc) and LR approvals.

• 1mm x 1mm pin cross section allows nominal current up to 10A
• Horizontal PCB mounting and solder pin length of 3.8mm
• Ratings per  IEC/EN 60664-1 standards and flammability class per UL94  V0
• Robust housing, shock and vibration resistant
• Rated impulse voltage of 2.5KV (III/3), 2.5KV (III/2) and 2.5KV (II/2)
• Rated voltage of 160V (III/2), 320V (II /2) and rated current of 10A
• Limit temperature range from -60°C to 100°C

Aplicaţii

Industrial
